NEW / EDGE BANDER MACHINES

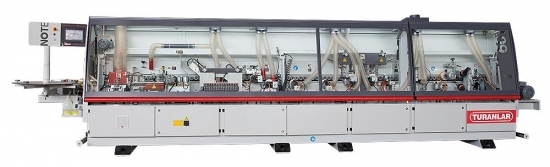

Edgeband T-EB 601
Technical features of the edger:
- Machine dimensions:
- 1000x7080x1710mm;
- Working height: 910mm;
- Speed: 15/20 m/min;
- Power: 17.5 Kw;
- Air pressure: 6 bar;
- Total air usage: 400 lt/min;
- Pre-grinding: 2x1.5 Kw/12000 Rpm;
- Final cut: 2x0.37 Kw/12000 Rpm;
- Top and bottom grinding: 2x0.37 Kw/12000 Rpm;
- Trim: 4x0.37 Kw/12000 Rpm;
- Grooving Saw: 2.2 Kw/2800 Rpm;
- Polishing motor: 2x0.55 Kw/1400 Rpm;
- Weight: 4800 kg
